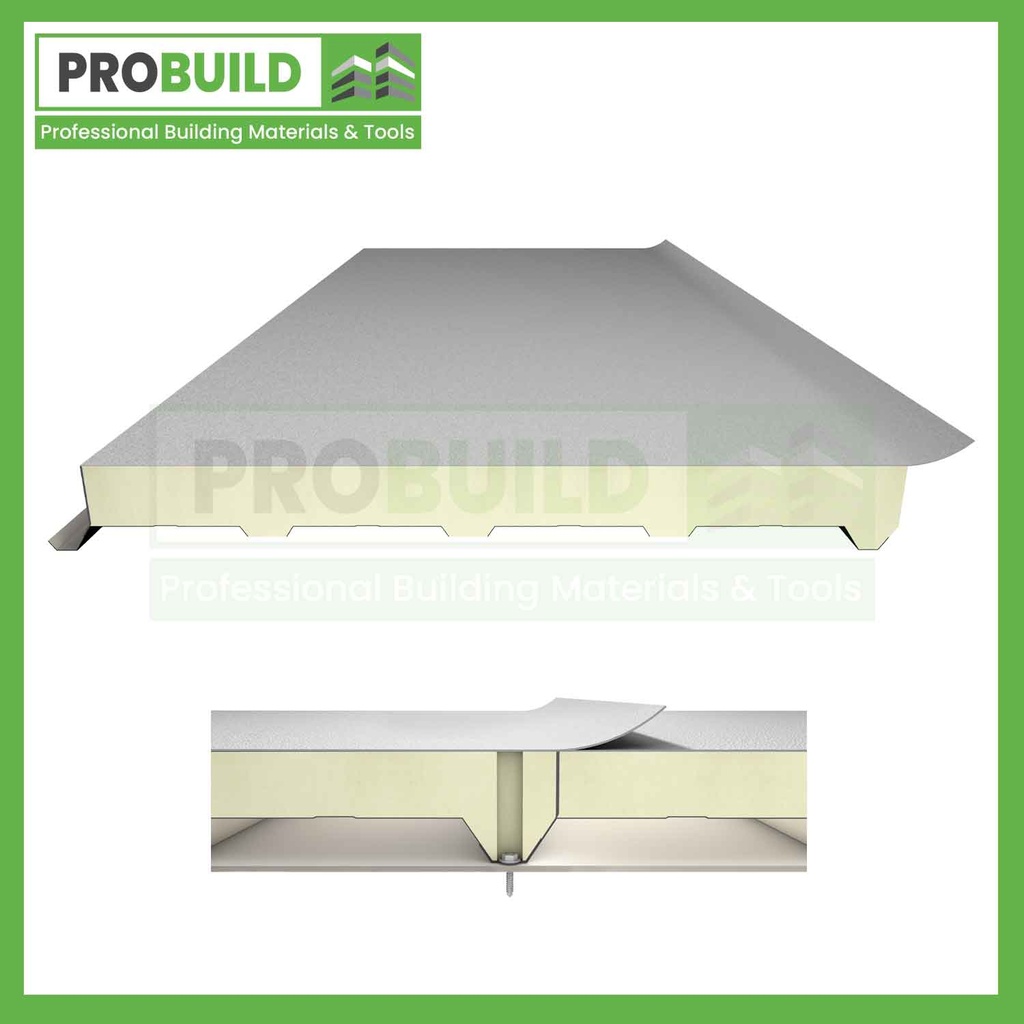

5 Ribs Membrane Roof Panel-Single Sheet
5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.
