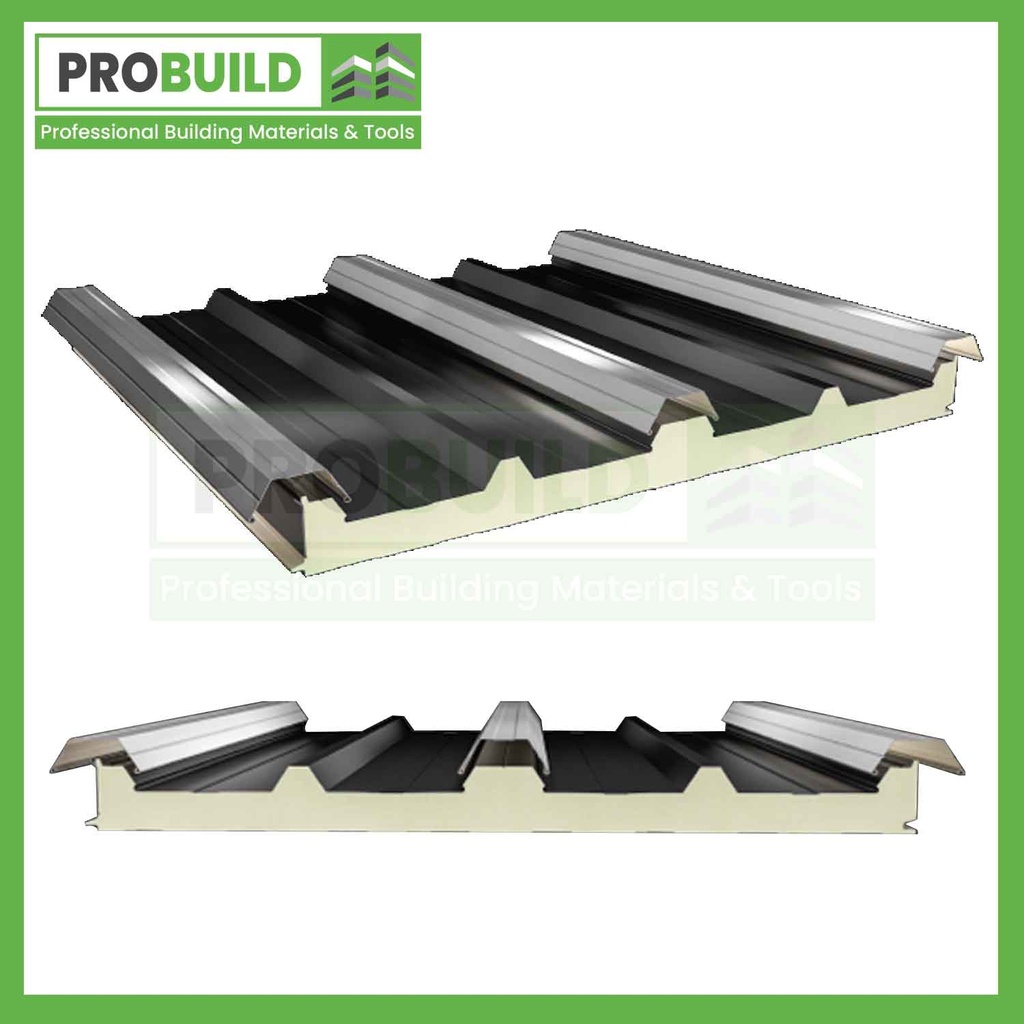

5 Ribs Secret Fix Roof Panel
5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PUR and PIR insulation alternative.
