Sandwich Roof Panels

3 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1 B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m and 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternative besides PUR and PIR insulation.

The 4 ribs profiled outer sheet is compatible with the solar panels.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
The design of the clamp allows the solar panel to be assembled to the panel without drilling.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m and 15 m.
Core thickness options 40-50-60 mm.
According to TS EN 14509, U values range between 0,49 – 0,34 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1 B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m and 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternative besides PUR and PIR insulation.

3 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m and 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
PUR and PIR insulation alternative.

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PUR and PIR insulation alternative.

The 5 ribs profiled outer sheet is compatible with the solar panels.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
The design of the clamp allows the solar panel to be assembled to the panel without drilling.
Possibility to screw from the middle rib.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is galvanized sheet coated with PVC.
Application of flat roofs and roofs with a slope lower than 5%.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm,
PVC Membrane thickness options 1,20-1,50-1,80-2,00mm,
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.

3 ribs profiled outer sheet.
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum.
Application on roofs with a slope higher than 5%.
Possibility to use in modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
GRP thickness options between 0,70mm – 1,00mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

5 ribs profiled outer sheet.
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum.
Application on roofs with a slope higher than 5%.
Possibility to use in modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length: 2m.
Core thickness options: 40, 50, 60, 70, 75, 80, 100, 120, 150, 180, 200mm.
GRP thickness options between 0,70mm – 1,00mm.
PUR and PIR insulation alternative.

5 ribs profiled outer sheet.
Prepainted galvanized steel inner and outer sheet material.
Usage in buildings that require fire safety.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated roof panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.

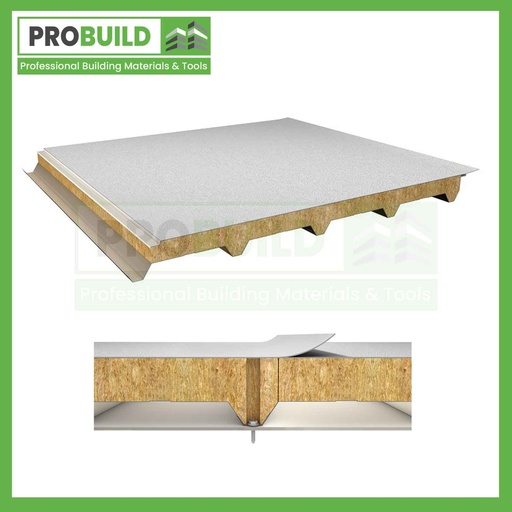

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, and the outer sheet is PVC or TPO Membrane.
Usage in buildings that require fire safety.
Application of terrace roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s1; d0 for Rock Wool insulated roof panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PVC or TPO membrane thickness options 1,20-1,50-1,80-2,00mm.
PUR and PIR insulation alternatives besides Rock Wool insulation.

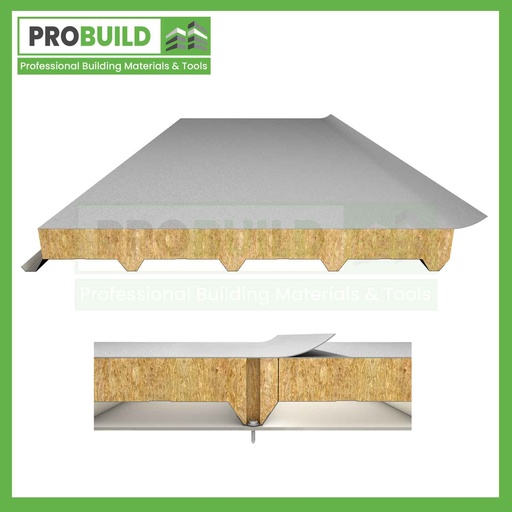

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, and the outer sheet is galvanized sheet coated with PVC membrane.
Usage in buildings that require fire safety.
Application of flat roofs and roofs with a slope lower than 5%.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PVC membrane thickness options 1,20-1,50-1,80-2,00mm.
PUR and PIR insulation alternatives besides rock wool insulation.
