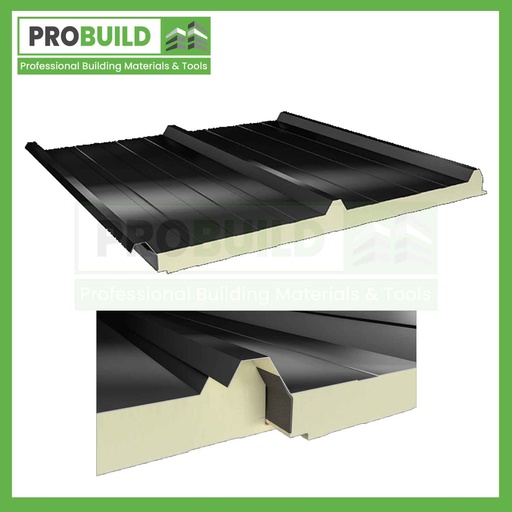

3 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1 B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m and 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternative besides PUR and PIR insulation.

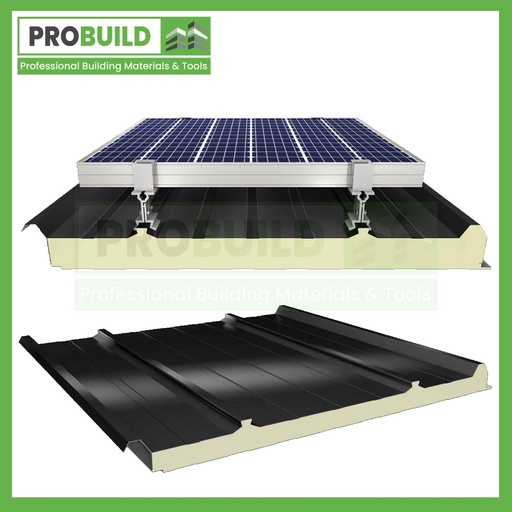

The 4 ribs profiled outer sheet is compatible with the solar panels.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
The design of the clamp allows the solar panel to be assembled to the panel without drilling.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m and 15 m.
Core thickness options 40-50-60 mm.
According to TS EN 14509, U values range between 0,49 – 0,34 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

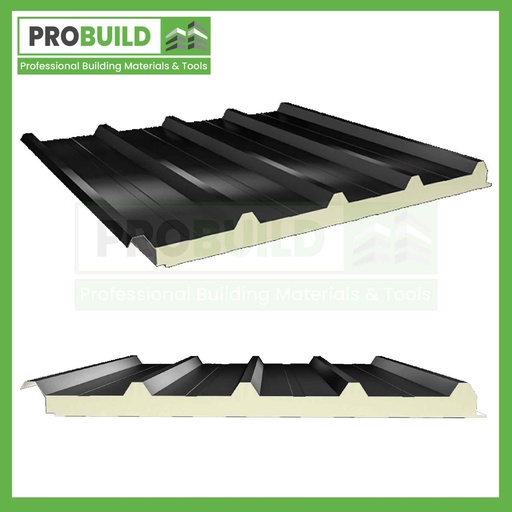

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1 B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2 m and 15 m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
EPS insulation alternative besides PUR and PIR insulation.

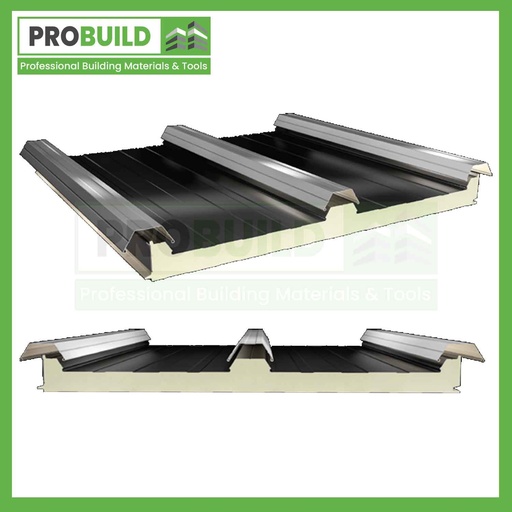

3 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Production flexibility at any ordered length between 2m and 15m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
PUR and PIR insulation alternative.

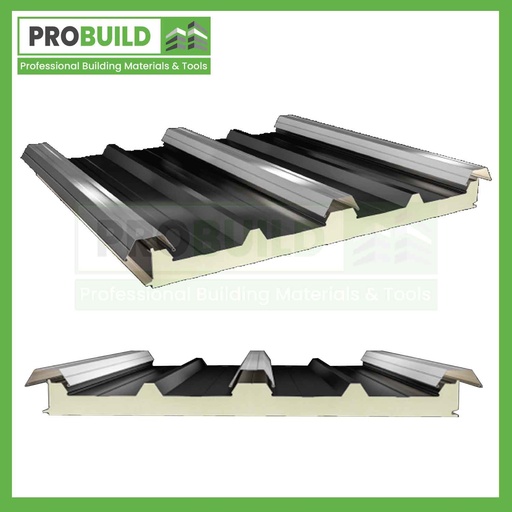

5 ribs profiled outer sheet.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Application on roofs with a slope higher than 5%.
Possibility to screw from the middle rib.
Optional middle cap profile.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm.
PUR and PIR insulation alternative.

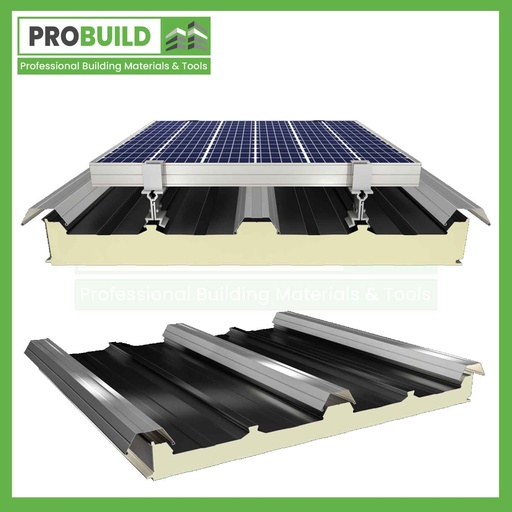

The 5 ribs profiled outer sheet is compatible with the solar panels.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Production in various color options.
Application on roofs with a slope higher than 5%.
The design of the clamp allows the solar panel to be assembled to the panel without drilling.
Possibility to screw from the middle rib.
Full impermeability via the cap profile placed on the connecting screws.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

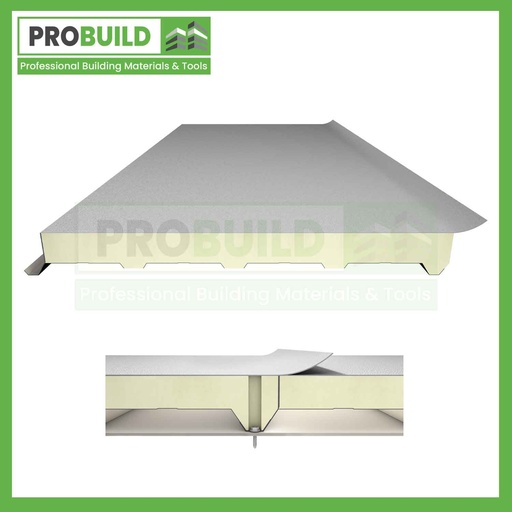

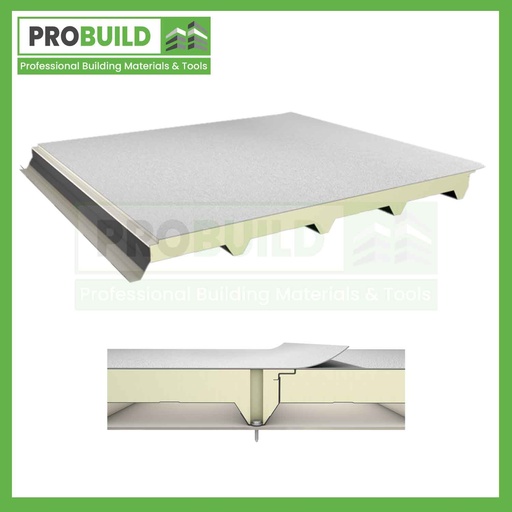

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane.
Application of flat roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
PVC Membrane thickness options 1,20-1,50-1,80-2,00mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, outer sheet is galvanized sheet coated with PVC.
Application of flat roofs and roofs with a slope lower than 5%.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm,
PVC Membrane thickness options 1,20-1,50-1,80-2,00mm,
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
Mineral Wool insulation alternative besides PUR and PIR insulation.

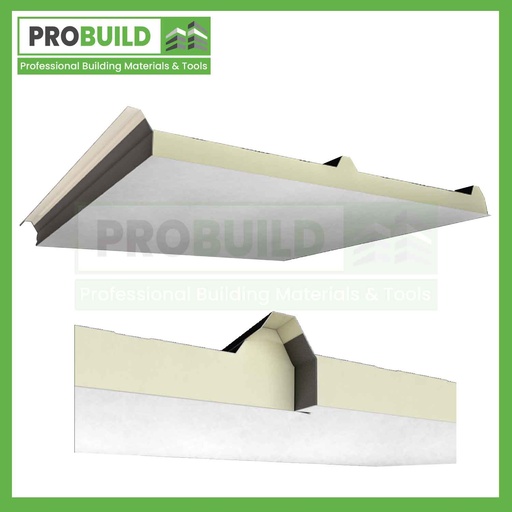

3 ribs profiled outer sheet.
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum.
Application on roofs with a slope higher than 5%.
Possibility to use in modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length 2m.
Core thickness options 40-50-60-70-75-80-100-120-150-180-200mm.
GRP thickness options between 0,70mm – 1,00mm.
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternative.

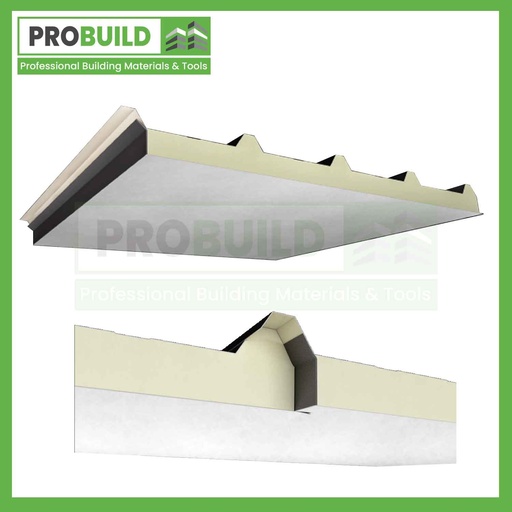

5 ribs profiled outer sheet.
Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum.
Application on roofs with a slope higher than 5%.
Possibility to use in modern animal and poultry husbandry facilities, and environments requiring chemical resistance.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels.
Length: 2m.
Core thickness options: 40, 50, 60, 70, 75, 80, 100, 120, 150, 180, 200mm.
GRP thickness options between 0,70mm – 1,00mm.
PUR and PIR insulation alternative.

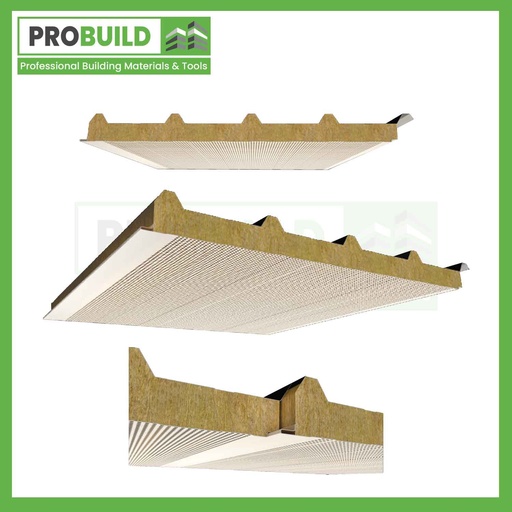

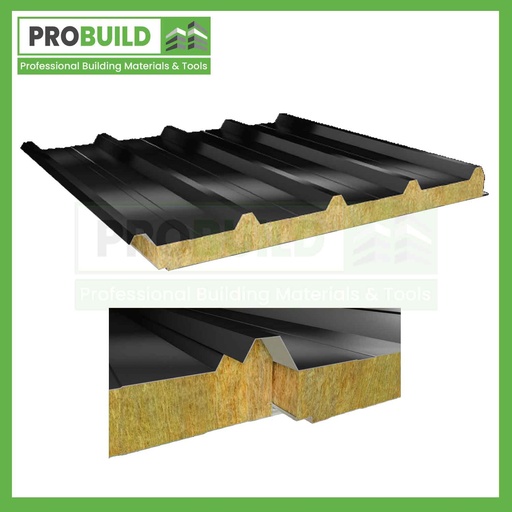

5 ribs profiled outer sheet.
Prepainted galvanized steel inner and outer sheet material.
Usage in buildings that require fire safety.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated roof panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.

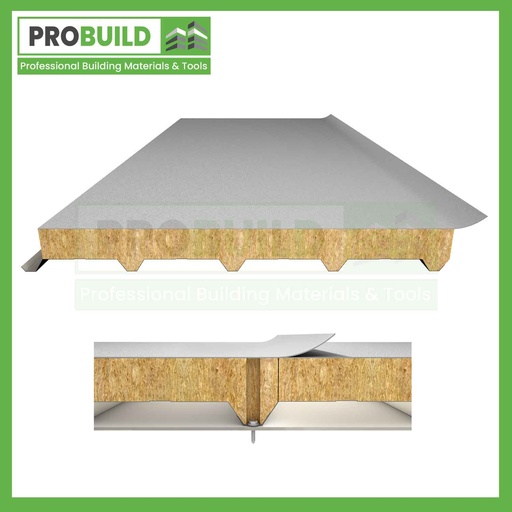

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, and the outer sheet is PVC or TPO Membrane.
Usage in buildings that require fire safety.
Application of terrace roofs and roofs with a slope lower than 5%.
Fire performance according to TS EN 13501-1, B-s1; d0 for Rock Wool insulated roof panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PVC or TPO membrane thickness options 1,20-1,50-1,80-2,00mm.
PUR and PIR insulation alternatives besides Rock Wool insulation.

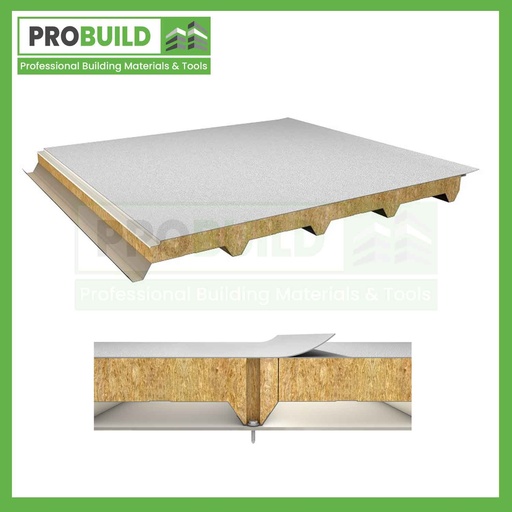

5 ribs profiled inner sheet.
The inner sheet is prepainted galvanized steel, and the outer sheet is galvanized sheet coated with PVC membrane.
Usage in buildings that require fire safety.
Application of flat roofs and roofs with a slope lower than 5%.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PVC membrane thickness options 1,20-1,50-1,80-2,00mm.
PUR and PIR insulation alternatives besides rock wool insulation.

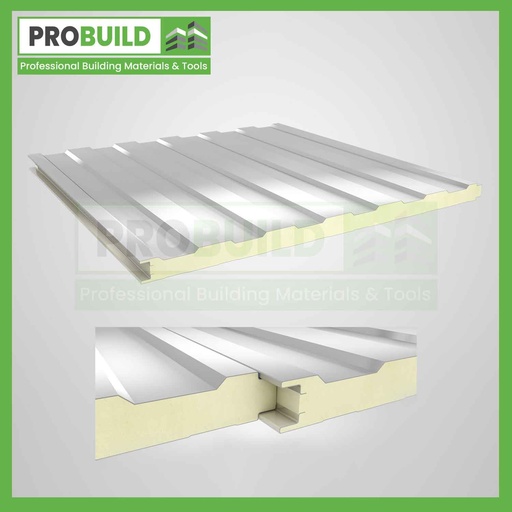

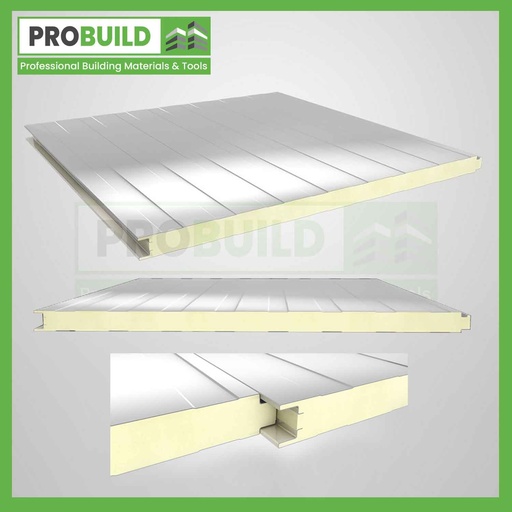

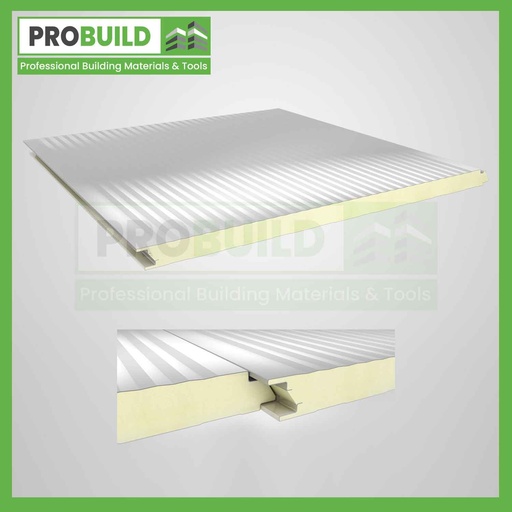

Lined, micro-lined, and deep-lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Length 2m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200mm; deep-lined panels 40-50-60mm.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.

Lined, micro-lined, and deep-lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Length 2m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200mm; deep lined panels 40-50-60mm.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.

Lined, micro-lined, and deep-lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
External fixing joint detail.
Both vertical and horizontal cladding.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Length 2m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200mm; deep lined panels 40-50-60mm.
Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation.

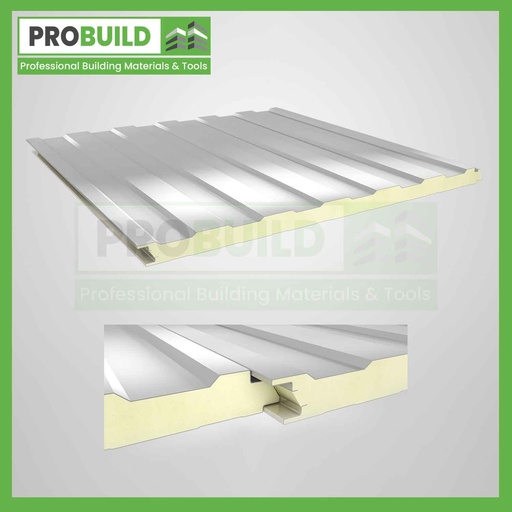

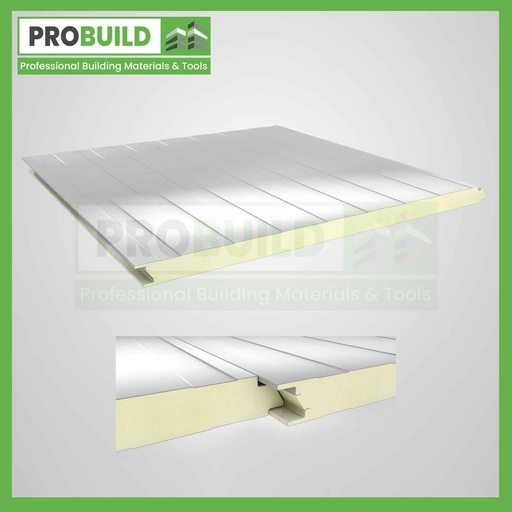

Lined, micro-lined, deep-lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Length 2m.
Core thickness options: lined and micro-lined panels 40-50-60-70-75-80-100-120-150-180-200mm; deep-lined panels 40-50-60mm
Mineral Wool insulation alternative besides PUR and PIR insulation

Lined, micro-lined, deep-lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Length 2m.
Core thickness options: lined and micro lined panels 40-50-60-70-75-80-100-120-150-180-200mm; deep-lined panels 40-50-60mm.
Mineral Wool insulation is an alternative to PUR and PIR insulation.

Lined, micro-lined, deep-lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated wall panels, B-s1; d0 for PIR insulated wall panels.
Length 2m.
Core thickness options: lined and micro lined panels 40-50-60-70-75-80-100-120-150-180-200mm; deep-lined panels 40-50-60mm.
Mineral Wool insulation is an alternative to PUR and PIR insulation.

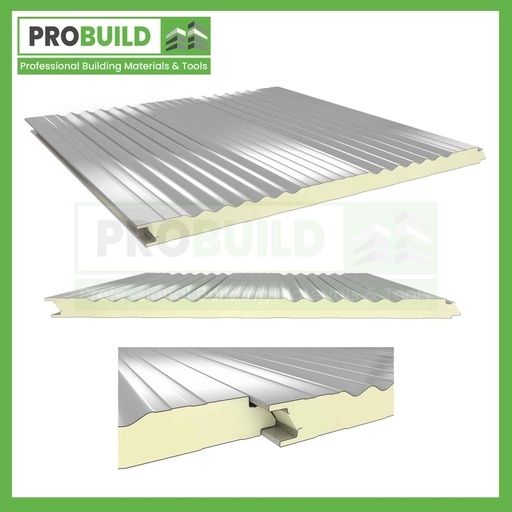

Sinus and lined surface type.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Secret fixing joint detail.
Both vertical and horizontal cladding.
Length 2m.
Core thickness options, 40-50-60-70-75-80-100-120-150-180-200mm.
Mineral Wool insulation is an alternative besides PUR and PIR insulation.

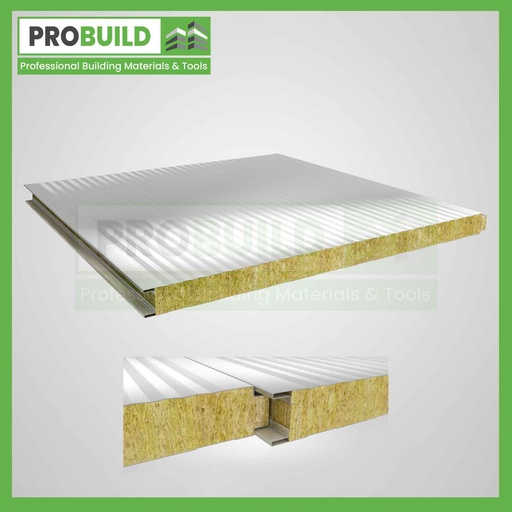

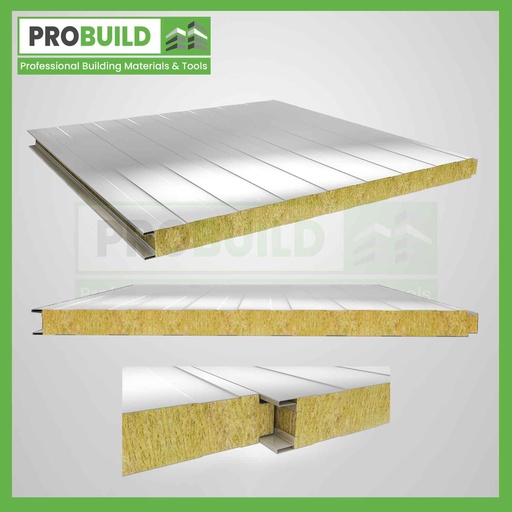

Lined and micro-lined surface type options.
Coated galvanized sheet, inner and outer surface material.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.

Lined and micro-lined surface type options.
Coated galvanized sheet, inner and outer surface material.
External fixing joint detail.
Both vertical and horizontal cladding.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.

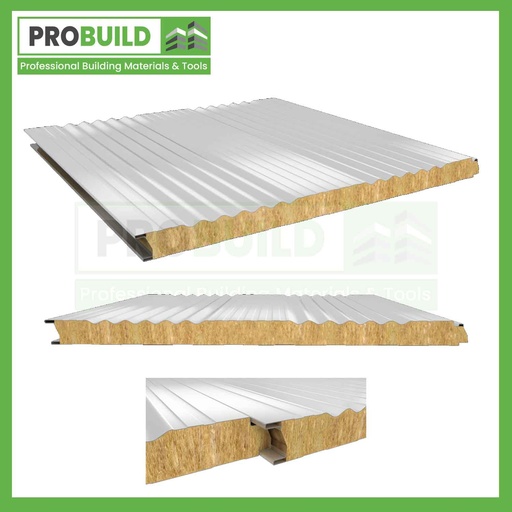

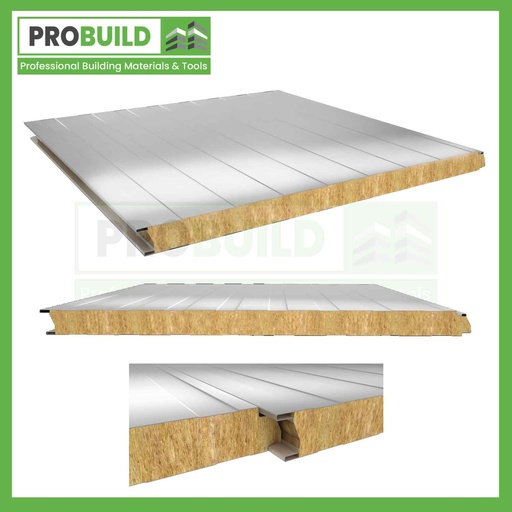

Lined, micro-lined, and sinus & lined surface type options.
Coated galvanized sheet, inner and outer surface material.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.

Lined, micro-lined, and sinus & lined surface type options.
Coated galvanized sheet, the inner and outer surface material.
Secret fixing joint detail.
Usage in buildings that require fire safety
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.
PUR, PIR, and EPS insulation alternatives besides Rock Wool insulation.

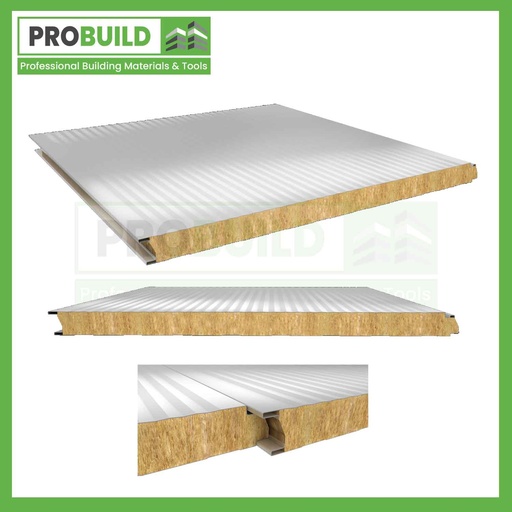

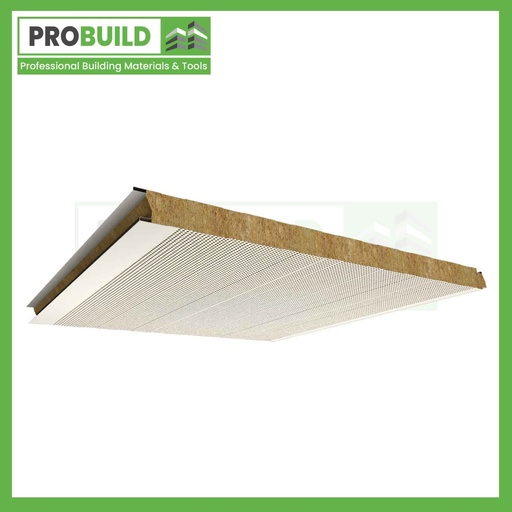

Lined, micro-lined, and sinus & lined surface type options.
Prepainted galvanized steel or aluminum inner and outer sheet alternatives.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Usage in buildings that require fire safety.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated wall panels.
Length 2m.
PUR and PIR insulation alternatives besides Rock Wool insulation.

Lined and flat surface type options.
Prepainted galvanized steel, stainless steel, or PVC film laminated inner and outer sheet alternatives.

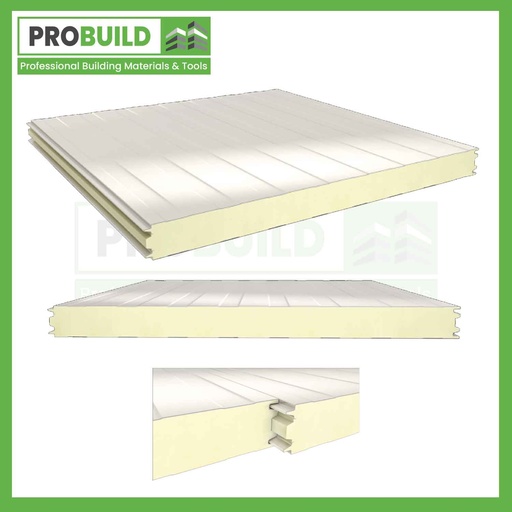

Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated cold storage panels, B-s1; d0 for PIR insulated cold storage panels.
Length 2m.
Core thickness options 80-100-120-150-180-200mm.
PUR and PIR insulation alternatives.

Lined and flat surface type options.
Prepainted galvanized steel, stainless steel, or PVC film laminated inner and outer sheet alternatives.

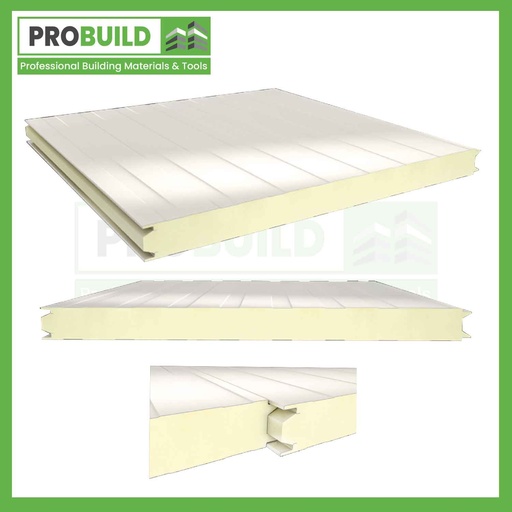

Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated cold storage panels, B-s1; d0 for PIR insulated cold storage panels.
Length 2m.
Core thickness options 80-100-120-150-180-200mm.
PUR and PIR insulation alternatives.

Lined type outer sheet.
Outer sheet is prepainted galvanized steel, inner sheet is perforated prepainted galvanized steel.
Both vertical and horizontal cladding.
External fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.

5 ribs profiled outer sheet.
Outer sheet is prepainted galvanized steel, inner sheet is perforated prepainted galvanized steel.
Usage for sound insulation and acoustic improvement.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Length 2m.
Core thickness options 50-60-80-100-120-150mm.

Lined type outer sheet.
Outer sheet is prepainted galvanized steel, inner sheet is perforated prepainted galvanized steel.
Both vertical and horizontal cladding.
Secret fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Length 2m.
Core thickness options 50-60-80-100-120-150 mm.

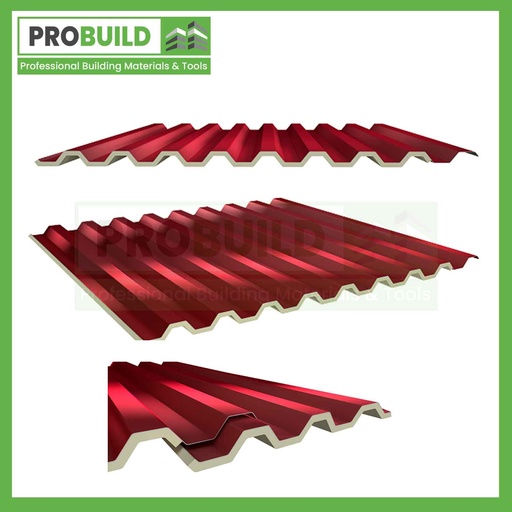

Outer Sheet: 9 Ribs Profiled
Outer Sheet Metal Type: Pre-painted Galvanized Sheet
Outer Sheet Color: RAL 9002, RAL 3004
Sheet Thickness: 0,40 – 0,50 – 0,60 mm
Length Options: 4, 5, 6, 7, 8 linear meters
Insulation Core: Polyurethane
Insulation Thickness: 15 mm
Inner Sheet: Polyethylene Film or optional Aluminum Foil

Usage as the complementary product with the 3 and 5 ribs sandwich roof panel profiled.
Prepainted galvanized steel or aluminum option.
Production flexibility at any ordered length between 2m & 16m.
Sheet thickness options 0,40-0,50-0,60-0,70-0,80mm.
Possibility to apply on the roof and wall as a single layer or a double layer with thermal insulation.

Usage as a complementary product with the 3 and 5 ribs sandwich roof panel profiled.
Prepainted galvanized steel or aluminum option.
Production in various color options.
Production flexibility at any ordered length between 2m - 16m.
Sheet thickness options 0,40-0,50-0,60-0,70-0,80 mm.
Possibility to apply on the roof and wall as a single layer or double layer with thermal insulation.

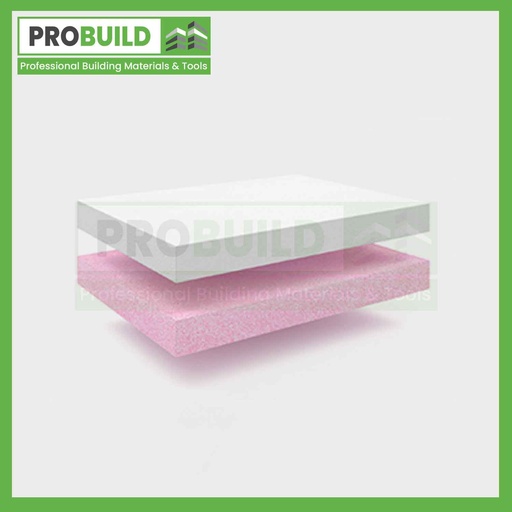

Usage with densities of 16 kg/m3 and above for exterior thermal insulation of buildings, and thermal insulation of roofs and cold storage.
Usage with densities of 14 kg/m3 and below for roof and foundation insulation and packaging.
Maximum energy saving in heating and cooling expenses.
Close porous polystyrene structure with 98% air and 2% plastic.
Lightness and ease of application.
Color alternatives of white and pink.
High flexibility and full dimensional stability.
Production with densities between 16 kg/m3-30 kg/m3.
Thickness options of 20-25-30-40-50-60-80-100mm.
Recommended use in exterior thermal insulation applications: at least 40mm and above
Thermal conductivity coefficient (λ) between 0,038-0,034 W/mK according to density as per TS ISO 8302.
Fire performance of E for EPS boards, B1 for EPS raw material, and B for exterior thermal insulation systems.
Standard board size of 50x100 cm.

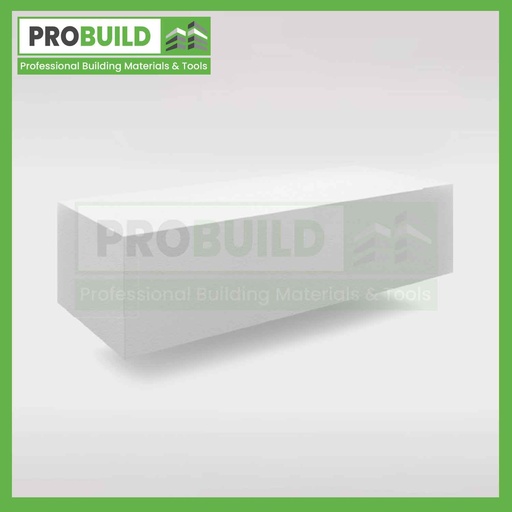

Light filler blocks are EPS lightweight filling materials.
Usage in concrete floors of buildings to reduce floor weight.
Savings on iron, concrete, and moulds used in construction.
Contribution to earthquake safety without placing additional load on buildings.
Contribution to thermal and sound insulation when applied between stories.
White colored.
Does not cause cracks because it does not absorb water out of cement, thanks to its close porous polystyrene structure with 98% air and 2% plastic.
High flexibility and dimensional stability.
Lightness, ease of transportation, and application.
Minimum transportation costs.
Production with densities between 10 kg/m3 and 30 kg/m3.
Production by cutting from blocks in sizes of 55x102x404 cm.
Usage with a minimum thickness of 20 cm.

EPS board with graphite addition.
20% better thermal insulation performance compared to Teknopor EPS thermal insulation boards.
Usage for exterior thermal insulation of buildings, and thermal insulation of roofs and cold storage.
Maximum energy saving in heating and cooling expenses.
Close porous polystyrene structure with 98% air and 2% plastic.
Lightness and ease of application.
Grey colored.
High flexibility and full dimensional stability.
Production with densities between 16 kg/m3 and 20 kg/m3.
Thickness options of 20-25-30-40-50-60-80-100mm.
Recommended use in exterior thermal insulation applications: at least 40 mm and above
Thermal conductivity coefficient (λ) 0,031 W/mK as per TS ISO 8302.
Fire performance of E for EPS boards, B1 for EPS raw material, and B for exterior thermal insulation systems as per TS EN 13501-1.
Standard board size of 50x100 cm.
